PARI LC SPRINT Family

Nebuliser for indication-specific droplet size

The PARI LC SPRINT family includes a range of nebulisers to meet the different therapeutic requirements of the nose, nasal sinuses, throat, pharynx and lungs.

The nebuliser is what actually generates the aerosol, so it is the most vital component of the entire inhalation system. To ensure that the aerosol has the optimum effect at a certain site, such as the sinuses or the lungs, a specific aerosol has to be generated. The nebulisers from the PARI LC SPRINT family are fitted with nozzle attachments in a range of colours. Each colour generates a different droplet size adjusted to the age group or the clinical condition.

The right PARI LC SPRINT Nebuliser depends on the age of the patient and which part of the airways is to be treated.

How PIF works

All PARI LC SPRINT Nebulisers sold in China furthermore contain PARI PIF Control. A breath-sensing feedback system developed by PARI

Slow inhalation promotes the deposition of the active ingredients in the lungs. To achieve the best possible inspiration for a high level of lung deposition.

  • PIF = Peak Inspiratory Flow
  • In the event of too rapid inhalation, the inspiratory valve shim closes the nebuliser chamber to a small opening.
  • You feel this as resistance - a sign to breathe out and inhale more slowly with the next breath. Until no more resistance can be felt.

PARI LC SPRINT family – customised to the individual needs of users

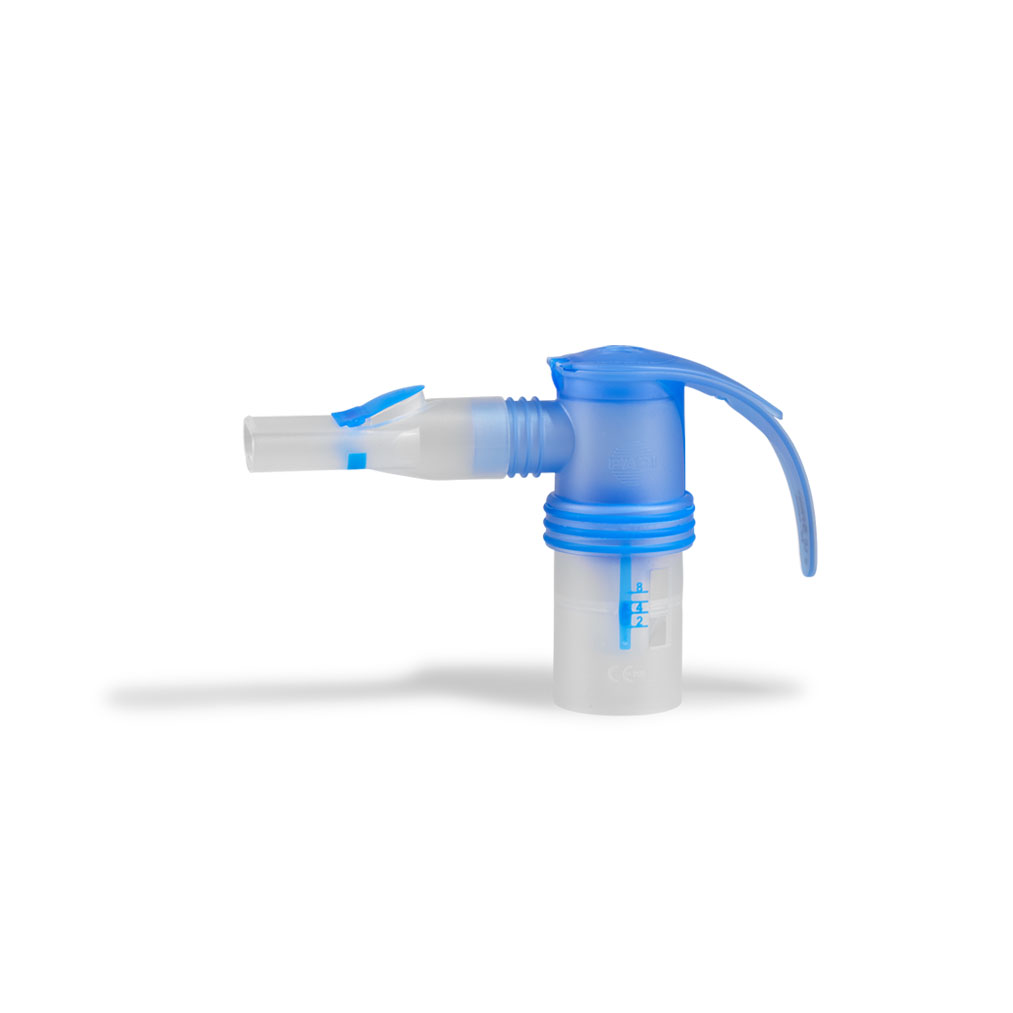

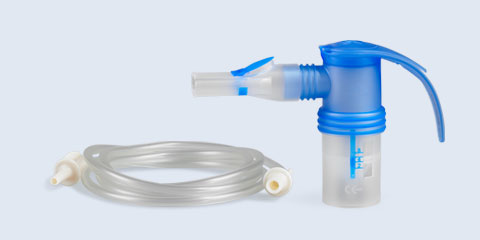

PARI LC SPRINT Nebuliser

PARI LC SPRINT Nebuliser

Users
For adults and children from 4 years of age for the treatment of the airways.

Configuration

  • PARI LC SPRINT Nebuliser with blue nozzle insert
  • Mouthpiece
  • Connection tubing

Item No.: 023G1005

Aerosolcharakteristika

PARI TurboBOY Compressor in combination with PARI LC SPRINT Nebuliser

Total Output Rate:600 mg/min
MMD:3.5 µm
Mass percentage below 5µm:67 %

Downloads

PARI LC SPRINT Family

Instructions for use
023D1050-R 2024-01

Download PDF

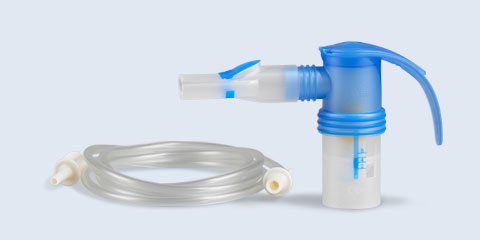

PARI LC SPRINT Junior Nebuliser

PARI LC SPRINT Junior Nebuliser

Users
For children for the treatment of the airways

Configuration

  • PARI LC SPRINT Nebuliser with yellow nozzle insert
  • Mouthpiece
  • Connection tubing

Item No.: 023G1105

Aerosol characteristics

PARI JuniorBOY Compressor in combination with PARI LC SPRINT Junior Nebuliser

Total Output Rate:370 mg/min
MMD:2.9 µm
Mass percentage below 5µm:76 %

Downloads

PARI LC SPRINT Family

Instructions for use
023D1050-R 2024-01

Download PDF

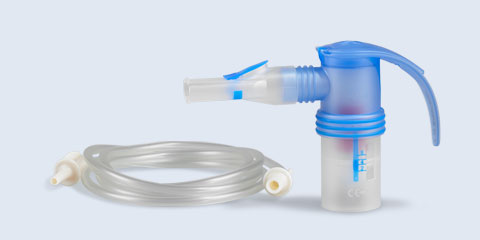

PARI LC SPRINT STAR Nebuliser

PARI LC SPRINT STAR Nebuliser

Users
For children and adults for the treatment of the deep airways.

Configuration

  • PARI LC SPRINT Nebuliser with red nozzle insert
  • Mouthpiece
  • Connection tubing.

Item No.: 023G1255

Aerosol characteristics

PARI BOY Compressor in combination with PARI LC SPRINT STAR Nebuliser

Total Output Rate:450 mg/min
MMD:2.2 µm
Mass percentage below 5 µm:89 %

Downloads

PARI LC SPRINT Family

Instructions for use
023D1050-R 2024-01

Download PDF

For the treatment of the paranasal sinuses

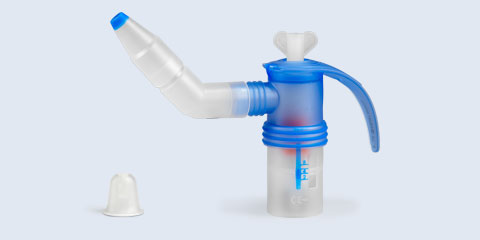

PARI LC SPRINT SINUS N Nebuliser

PARI LC SPRINT SINUS N Nebuliser

Users
For children and adults from 6 years for the treatment of the nasal sinuses.

Configuration

  • PARI LC SPRINT SINUS N Nebuliser with orange nozzle insert
  • PARI SINUS tubing system with vibration adapter

PARI LC SPRINT SINUS N Nebulisers are compatible for use with the PARI SINUS2 and PARI SINUS N devices only

Item No.: 023G2805

Aerosol characteristics

PARI SINUS N Compressor in combination with PARI LC SPRINT SINUS N Nebuliser

Total Output Rate:220 mg/min
MMD:3.2 µm
Mass percentage below 5 µm:71 %

Downloads

PARI SINUS N

Instructions for use
028D1029-F 2024-01

Download PDF

For the treatment of the throat and pharynx

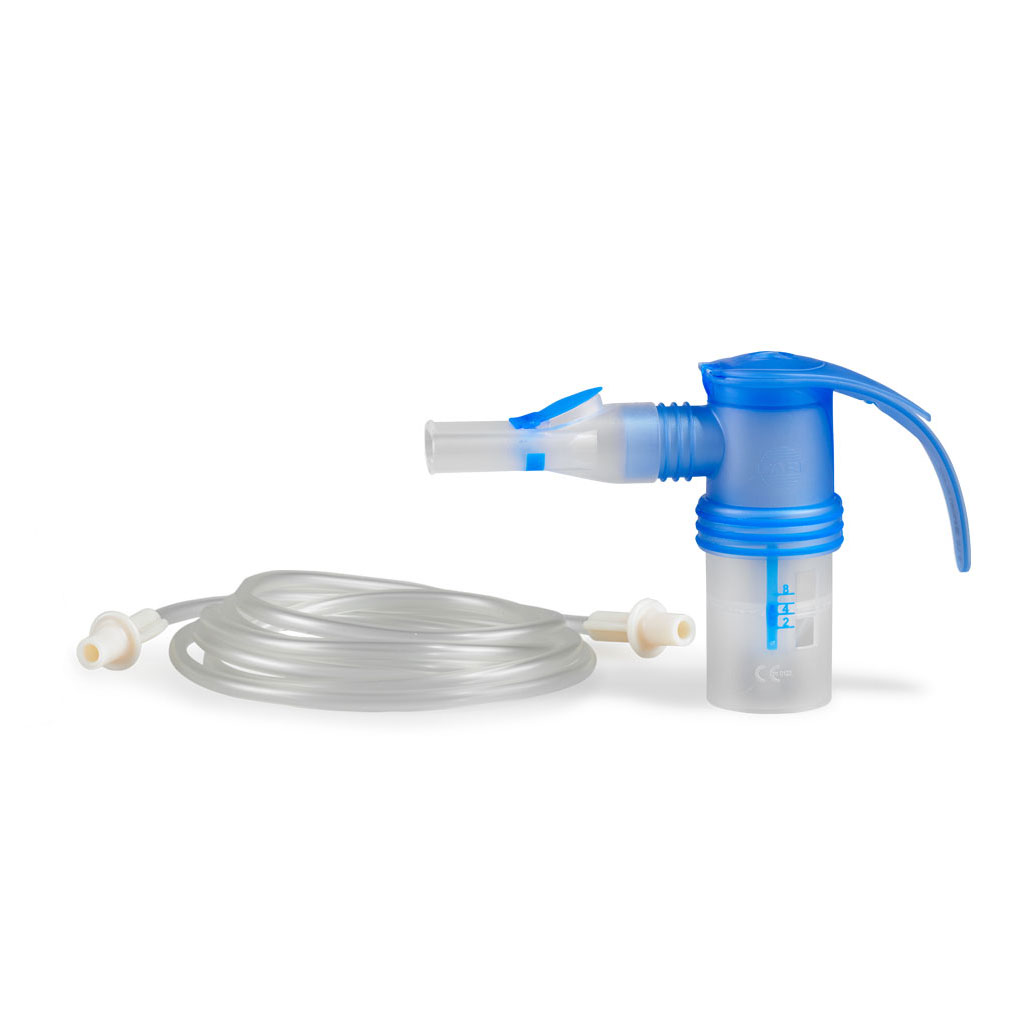

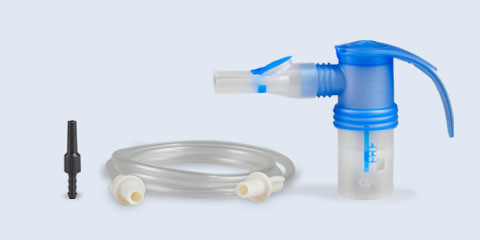

PARI LC SPRINT XLent Nebuliser

PARI LC SPRINT XLent Nebuliser

Users
For children and adults for the treatment of throat and pharynx.

Configuration

  • PARI LC SPRINT XLent Nebuliser (transparent nozzle attachment)
  • Connection tubing
  • Tubing adapter for use with PARI COMPACT N

PARI LC SPRINT XLent Nebulisers are compatible for use with PARI BOY, PARI COMPACT N and PARI SINUS N devices.

Item No.: 023G1805

Aerosol characteristics

PARI LC SPRINT XLent Nebuliser in combination with PARI BOY Compressor.

Total Output Rate:875 mg/min
MMD:7.3 µm
Mass percentage below 5 µm:65.4 %
Massenanteil > 7 µm:53 %

PARI LC SPRINT XLent

Instructions for use
023D1055-F 2024-01

Download PDF

What the colours of the nebuliser inserts mean


Blue nozzle attachment
The blue nozzle attachment delivers droplets for efficient deposition in the central region of the lungs in older children and adults.
The blue nozzle can be found in the PARI LC SPRINT Nebuliser.

Yellow nozzle attachment
The yellow nozzle attachment delivers an especially fine aerosol for the small airways and for the treatment of babies and children.
The yellow nozzle can be found in the PARI LC SPRINT Junior Nebuliser.

Red nozzle attachment
Extra-fine droplets specifically for babies and young children in the obstructive phase – supplied, for instance, with the PARI JuniorBOY. The red nozzle attachment is also supplied with the PARI BOY to reach the finest structures of the lungs, specifically for COPD patients.
The red nozzle can be found in the: PARI LC SPRINT BABY Nebuliser and PARI LC SPRINT STAR Nebuliser.

Transparent nozzle attachment
To ensure active substances are optimally delivered to the upper airways, such as the throat, larynx and the trachea, extra large aerosol droplets are needed. The PARI XLent nozzle attachment generates these “XL droplets” and produces an ideal aerosol spectrum for the treatment of croup, pharyngitis or laryngitis, for instance.
The transparent nozzle can be found in the: PARI LC SPRINT XLent Nebuliser

Orange nozzle attachment
In combination with a pulsing feature, the orange nozzle attachment delivers an ideal aerosol spectrum for efficient deposition in the sinuses.
The orange nozzle can be found in the: PARI LC SPRINT SINUS Nebuliser

For the treatment of the lungs

PARI LC SPRINT Nebulisers for the lungs are compatible for use with all PARI BOY and PARI SINUS N devices.
When used with the PARI PEP S System you can combine inhalation therapy with respiratory physiotherapy to save time.

To the PARI BOY Pro
